DS32C3533

Product Summary

The DS32C3533 is a kind of accurate real-time clock (RTC). It is a clock/calendar that include an integrated temperature-compensated crystal oscillator (TCXO), crystal, and a bank of nonvolatile memory (FRAM) in a single package. The nonvolatile memory is available in two densities: 2048 x 8 and 8192 x 8 bits. The integration of the crystal resonator enhances the long-term accuracy of the devices as well as reduces the piece part count in a manufacturing line. The DS32C3533 operates as a slave device on an I2C serial interface, and is available in both commercial and industrial temperature ranges in a 300-mil, 20-pin SO package. The DS32C3533 is widely used in Servers, Utility Power Meters, Telematics and GPS.

Parametrics

DS32C3533 absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground: -0.3V to +5.0V; (2)Operating Temperature Range: -40℃ to +85℃; (3)Junction Temperature: +125℃; (4)Storage Temperature Range: -40℃ to +85℃; (5)Junction-to-Ambient Thermal Resistance (θJA): 55℃/W; (6)Junction-to-Case Thermal Resistance (θJC): 24℃/W; (7)Lead Temperature (soldering, 10s): +260℃; (8)Soldering Temperature (reflow, 2x max): +260℃.

Features

DS32C3533 features: (1)Integrated 32.768kHz Crystal; (2)Fast (400kHz) I2C Interface; (3)RTC Counts Seconds, Minutes, Hours, Day, Date, Month, and Year with Leap Year Compensation Valid Up to 2100; (4)RTC Accuracy ±2ppm from 0℃ to +40℃; (5)RTC Accuracy ±3.5ppm from -40℃ to 0℃ and +40℃ to +85℃; (6)Nonvolatile Memory with 10 Years of Guaranteed Backup Time and Write Protection; (7)Two Available Densities of Nonvolatile Memory: 2048 Bytes (DS32B35); 8192 Bytes (DS32C35); (8)No Cycle Limitations on Memory; (9)Power-Switching Circuit Selects Between Main Power and Battery Backup for the RTC; (10)Programmable Square Wave with Frequency of 32.768kHz, 8.192kHz, 4.096kHz, or 1Hz; (11)Two Time-of-Day Alarms; (12)Reset Output/Pushbutton Reset (Debounced) Input; (13)Programmable Output Provides Interrupt or Square Wave; (14)Calibrated 32.768kHz Open-Drain Output; (15)Temp Sensor with ±3℃ Accuracy; (16)3.3V Operating Voltage; (17)Commercial and Industrial Temperature Ranges; (18)300-mil, 20-Pin SO Package; (19)Underwriters Laboratories (UL) Recognized.

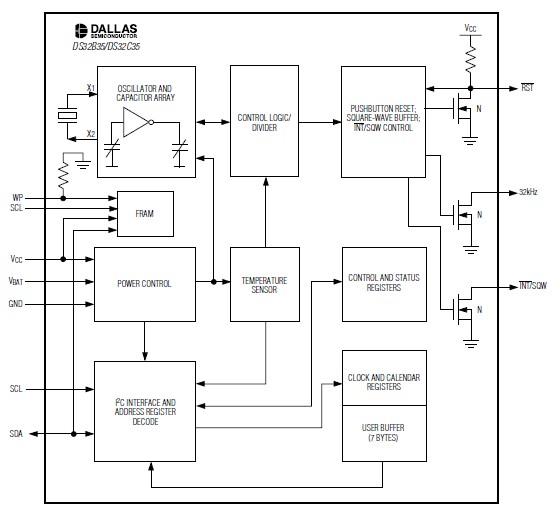

Diagrams
