Product Summary

The LTC1659CS8PBF is a single supply, rail-to-rail voltage out-put, 12-bit digital-to-analog converter (DAC) in an MSOP package. It includes a rail-to-rail output buffer amplifier and an easy-to-use 3-wire cascadable serial interface. The applicaitons of the LTC1659CS8PBF include Digital Calibration, Industrial Process Control, Automatic Test Equipment and Cellular Telephones.

Parametrics

LTC1659CS8PBF absolute maximum ratings: (1)VCC to GND: –0.5V to 7.5V; (2)Logic Inputs to GND: –0.5V to 7.5V; (3)VOUT: –0.5V to VCC + 0.5V; (4)Maximum Junction Temperature: 125℃; (5)Storage Temperature Range: –65 to 150℃; (6)Operating Temperature Range: 0 to 70℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1659CS8PBF features: (1)8-Lead MSOP Package; (2)12-Bit Resolution; (3)Supply Operation: 3V to 5V; (4)Buffered True Rail-to-Rail Voltage Output; (5)Output Swings from 0V to VREF; (6)VREF Can Tie to VCC; (7)Schmitt Trigger On Clock Input Allows Direct Optocoupler Interface; (8)Power-On Reset Clears DAC to 0V; (9)3-Wire Cascadable Serial Interface; (10)Maximum DNL Error: 0.5LSB; (11)Low Cost.

Diagrams

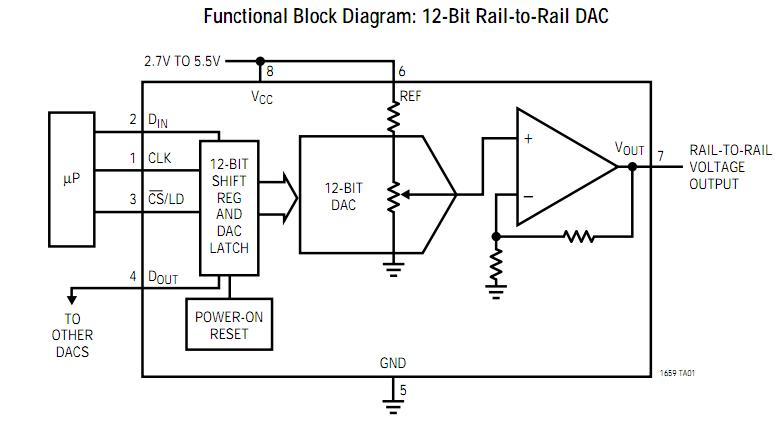

LTC1659CS8PBF block diagram
