Product Summary

The ADSP2185NBSTZ320 is a single-chip microcomputer optimized for digital signal processing (DSP) and other high speed numeric processing applications. The ADSP2185NBSTZ320 combines the ADSP-2100 family base archi- tecture (three computational units, data address generators and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, extensive interrupt capabilities and on-chip program and data memory.

Parametrics

ADSP2185NBSTZ320 absolute maximum ratings: (1)Supply Voltage: –0.3 V to +7 V; (2)Input Voltage: –0.3 V to VDD + 0.3 V; (3)Output Voltage Swing: –0.3 V to VDD + 0.3 V; (4)Operating Temperature Range (Ambient): –40 to +85℃; (5)Storage Temperature Range: –65 to +150℃; (6)Lead Temperature (5 sec): +280℃.

Features

ADSP2185NBSTZ320 features: (1)30 ns Instruction Cycle Time 33 MIPS Sustained Performance; (2)Single-Cycle Instruction Execution; (3)Single-Cycle Context Switch; (4)3-Bus Architecture Allows Dual Operand Fetches in Every Instruction Cycle; (5)Multifunction Instructions; (6)Power-Down Mode Featuring Low CMOS Standby Power Dissipation with 100 Cycle Recovery from Power-Down Condition; (7)Low Power Dissipation in Idle Mode.

Diagrams

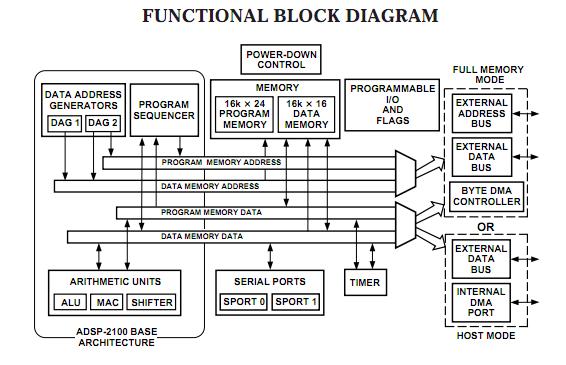

ADSP2185NBSTZ320 block diagram

ADSP-2100
ADSP-2100
Other

Data Sheet
Negotiable
