Product Summary

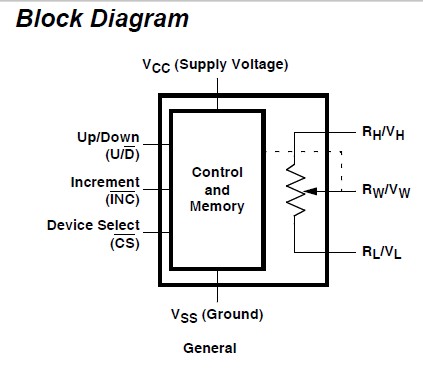

The Intersil X9116WS8 is a digitally controlled nonvolatile potentiometer designed to be used in trimmer applications. The X9116WS8 consists of 15 equal resistor segments that connect to the wiper pin through programmable CMOS switches. The tap position is programmed through a 3-wire up/down serial port. The last position of the wiper is stored in a nonvolatile memory location which is recalled at the time of power up of the device. The X9116WS8 can be used in many applications requiring a variable resistance. In many cases the X9116WS8 can replace a mechanical trimmer and offers many advantages such as temperature and time stability as well as the reliability of a solid state solution.

Parametrics

X9116WS8 absolute maximum ratings: (1)Temperature Under Bias: -65℃ to +135℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on CS, INC, U/D, VH/RH, VL/RL and VCC with Respect to VSS: -1V to +7V; (4)ΔV = |VH/RH-VL/RL|: 5.5V; (5)IW (10 seconds): ±10.0mA.

Features

X9116WS8 features: (1)Solid-state nonvolatile; (2)16 wiper taps; (3)3-wire up/down serial interface; (4)VCC = 2.7V and 5V; (5)Active current < 50μA max.; (6)Standby current < 5μA max.; (7)RTOTAL = 10kΩ; (8)Packages: 8 Ld MSOP, 8 Ld SOIC; (9)Pb-free plus anneal available (RoHS compliant).
