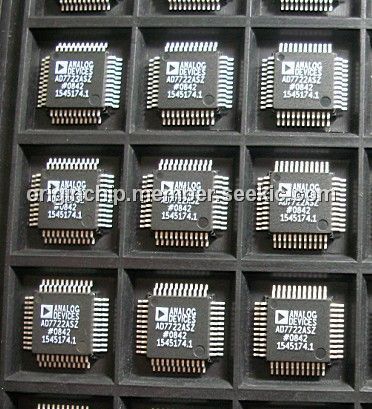

AD7722ASZ

QFP, 16-bit, sigma-delta ADC, 220 kSPS, +5 V, Inherently Monotonic, Linear Phase Digital Filter

Rated 5 Rating 5 | reviews | Write a review

Price:: US $20.50~23.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $20.50~23.00

PartNumber:: AD7722ASZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susan's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-10

From Other Seller

Part Number:AD7722ASZ
US $20.50 - 23.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

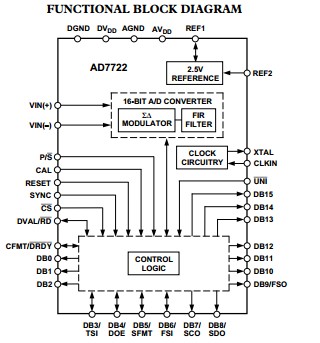

Product Summary

The AD7722ASZ is a complete low power, 16-bit, sigma-delta ADC. The part operates from a +5 V supply and accepts a differential input voltage range of 0 V to +2.5 V or ±1.25 V centered around a common-mode bias. The AD7722ASZ provides 16-bit performance for input bandwidths up to 90.625 kHz. The part provides data at an output word rate of 195.3 kHz. The analog input is continuously sampled by an analog modulator eliminating the need for external sample-and-hold circuitry. The modulator output of the AD7722ASZ is processed by two Finite Impulse Response (FIR) digital filters in series. The on-chip filtering reduces the external antialias requirements to first order, in most cases.

Parametrics

AD7722ASZ absolute maximum ratings: (1)DVDD to DGND: –0.3 V to 7 V; (2)AVDD, AVDD1 to AGND: –0.3 V to 7 V; (3)AVDD, AVDD1 to DVDD: –1 V to +1 V; (4)AGND, AGND1 to DGND: –0.3 V to +0.3 V; (5)Digital Inputs to DGND: –0.3 V to DVDD + 0.3 V; (6)Digital Outputs to DGND: –0.3 V to DVDD + 0.3 V; (7)VIN(+), VIN(–) to AGND: –0.3 V to AVDD + 0.3 V; (8)REF1 to AGND: –0.3 V to AVDD + 0.3 V; (9)REF2 to AGND: –0.3 V to AVDD + 0.3 V; (10)DGND, AGND1, AGND2: ±0.3 V; (11)Operating Temperature Range: –40 to +85℃; (12)Storage Temperature Range: –65 to +150℃; (13)Junction Temperature: +150℃; (14)θJA Thermal Impedance: 95℃/W; (15)Lead Temperature, Soldering: Vapor Phase (60 sec), +215℃; (16)Infrared (15 sec), +220℃.

Features

AD7722ASZ features: (1)16-Bit Sigma-Delta ADC; (2)64× Oversampling Ratio; (3)Up to 220 kSPS Output Word Rate; (4)Low-Pass, Linear Phase Digital Filter; (5)Inherently Monotonic; (6)On-Chip 2.5 V Voltage Reference; (7)Single Supply +5 V; (8)High Speed Parallel or Serial Interface.
