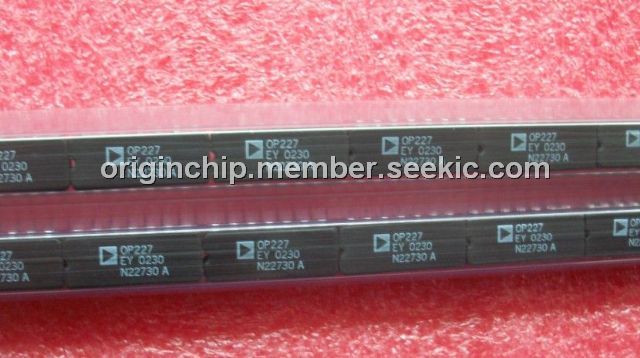

OP227EY

OP227EY, Instrumentation Operational Amplifier, 80 μV, 2.8 V/μs, 2.7Hz, CDIP14

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $7.00~10.00

PartNumber:: OP227EY

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susan's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-18

From Other Seller

Part Number:OP227EY
US $7.00 - 10.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The OP227EY is the first dual amplifier to offer a combination of low offset, low noise, high speed and guaranteed amplifier matching characteristics in one device. The OP227EY with a Vos match of 25mV typical, a TCVos match of 0.3/mV/℃ typical, and a 1/f corner of only 2.7Hz is an excellent choice for precision low noise designs. These D.C. characteristics, coupled with a slew rate of 2.8V/ms typical and a small-signal bandwidth of 8MHz typical, allow the designer to achieve AC performance previously unattainable with op-amp-based instrumentation designs.

Parametrics

OP227EY absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Input Voltage: ±22V; (3)Output Short-Circuit Duration: Indefinite; (4)Differential Input Voltage: ±0.7V; (5)Differential Input Current: ±25mA; (6)Storage Temperature Range: -65℃ to +150℃; (7)Operating Temperature Range: -25℃ to +85℃; (8)Lead Temperature (Soldering 60 sec): 300℃.

Features

OP227EY features: (1)Excellent Individual Amplifier Parameters; (2)Low VOS, 80 μV Max; (3)Offset Voltage Match, 80 μV Max; (4)Offset Voltage Match vs. Temperature, 1 μV/℃ Max; (5)Stable VOS vs. Time, 1 μV/MO Max; (6)Low Voltage Noise, 3.9 nV√Hz￣ Max; (7)Fast, 2.8 V/μs Typ; (8)High Gain, 1.8 Million Typ; (9)High Channel Separation, 154 dB Typ.
