Product Summary
The MF4CN100 is a versatile, easy to use, precision 4th order Butterworth low-pass filter. Switched-capacitor techniques eliminate external component requirements and allow a clock-tunable cutoff frequency. The ratio of the clock frequency to the low-pass cutoff frequency is internally set to 50 to 1 (MF4-50) or 100 to 1 (MF4-100). A Schmitt trigger clock input stage of The MF4CN100 allows two clocking options, either selfclocking (via an external resistor and capacitor) for standalone applications, or for tighter cutoff frequency control an external TTL or CMOS logic compatible clock can be applied. The maximally flat passband frequency response together with a DC gain of 1 V/V allows cascading The MF4CN100 sections together for higher order filtering.
Parametrics
MF4CN100 absolute maximum ratings: (1)Supply Voltage (V+-V-): 14V; (2)Voltage At Any Pin: V+ + 0.2V; V- - 0.2V; (3)input Current at Any Pin: 5 mA; (4)Package Input Current: 20 mA; (5)Power Dissipation: 500 mW; (6)Storage Temperature: 150°C; (7)ESD Susceptibility: 800 V; (8)Soldering Information: N Package: 10 sec. 260°C; SO Package: Vapor Phase (60 sec.) 215°C; Infrared (15 sec.): 220°C.
Features
MF4CN100 features: (1)Low Cost; (2)Easy to use; (3)8-pin mini-DIP or 14-pin wide-body S.O; (4)No external components; (5)5V to 14V supply voltage; (6)Cutoff frequency range of 0,1 Hz to 20 kHz ; (7)Cutoff frequency accuracy of ±0.3% typical; (8)Cutoff frequency set by external clock; (9)Separate TTL and CMOS/Schmitt-trigger dock inputs.

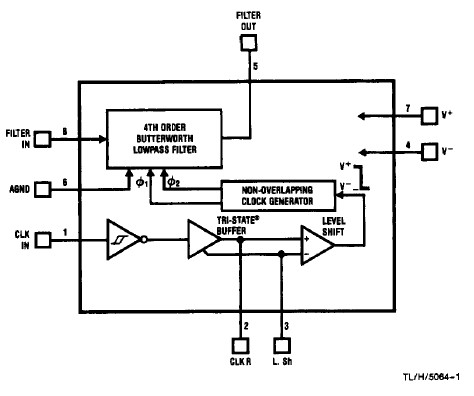

Diagrams
 |
 MF4CN-50 |
