Product Summary

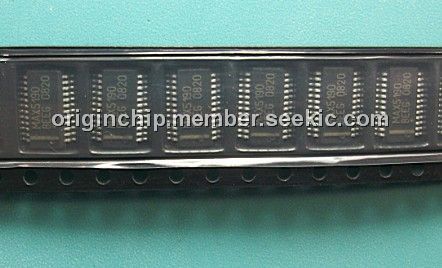

The MAX5190BEEG+ is an 8-Bit, 40MHz, Current/Voltage-Output DAC. It provides equal specifications, with on-chip precision resistors for voltage output operation. The MAX5190BEEG+ is designed for a 10pVs glitch operation to minimize unwanted spurious signal components at the output. An on-board +1.2V bandgap circuit provides a well-regulated, low-noise reference that can be disabled for external reference operation. The MAX5190BEEG+ is designed to provide a high level of signal integrity for the least amount of power dissipation. It is used in Signal Reconstruction, Digital Signal Processing, Arbitrary Waveform Generation (AWG), Imaging Applications.
Parametrics
MAX5190BEEG+ absolute maximum ratings: (1)AVDD, DVDD to AGND, DGND: -0.3V to +6V; (2)Digital Input to DGND: -0.3V to +6V; (3)OUTP, OUTN, CREF to AGND: -0.3V to +6V; (4)VREF to AGND: -0.3V to +6V; (5)AGND to DGND: -0.3V to +0.3V; (6)AVDD to DVDD: ±3.3V; (7)Maximum Current into Any Pin: 50mA; (8)Continuous Power Dissipation (TA = +70℃) 24-Pin QSOP (derate 9.50mW/℃ above +70℃): 762mW; (9)Operating Temperature Ranges: -40℃ to +85℃; (10)Storage Temperature Range: -65℃ to +150℃; (11)Lead Temperature (soldering, 10s): +300℃.
Features
MAX5190BEEG+ features: (1)+2.7V to +3.3V Single-Supply Operation; (2)Wide Spurious-Free Dynamic Range: 70dB at fOUT = 2.2MHz; (3)Fully Differential Output; (4)Low-Current Standby or Full Shutdown Modes; (5)Internal +1.2V Low-Noise Bandgap Reference; (6)Small 24-Pin QSOP Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX5190BEEG+ |
Maxim Integrated Products |
DAC (D/A Converters) 8-Bit High Speed DAC |
Data Sheet |
|
|
||||||||||||
|
MAX5190BEEG+T |
Maxim Integrated Products |
DAC (D/A Converters) 8-Bit High Speed DAC |
Data Sheet |
|
|
||||||||||||
