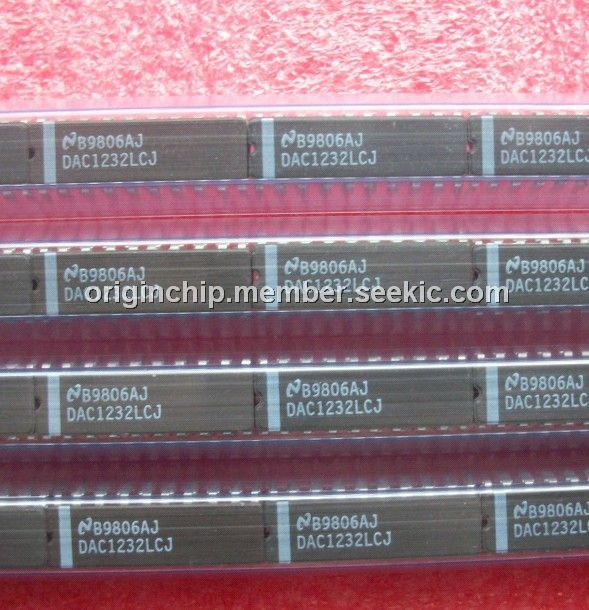

DAC1232LCJ

12-bit, multiplying D to A converter, 20-DIP, 1.4V, 500 mW, DAC1232LCJ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~6.00

PartNumber:: DAC1232LCJ

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 98+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susan's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-19

From Other Seller

Part Number:DAC1232LCJ
US $5.00 - 6.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The DAC1232LCJ is a kind of 12-bit multiplying D to A converter designed to interface directly with a wide variety of microprocessors (8080, 8048, 8085, Z-80, etc.). Double buffering input registers and associated control lines allow the DAC1232LCJ to appear as a two-byte stack in the system memory or I/O space with no additional interfacing logic required. The DAC1232LCJ can be used with an 8-bit data bus directly as it internally formulates the 12-bit DAC data from its 8 input lines. The device accepts left-justified data from the processor.

Parametrics

DAC1232LCJ absolute maximum ratings: (1)Supply Voltage (VCC): 17 VDC; (2)Voltage at Any Digital Input: VCC to GND; (3)Voltage at VREF Input: ±25V; (4)Storage Temperature Range: -65℃ to +150℃; (5)Package Dissipation at TA=25℃: 500 mW; (6)DC Voltage Applied to IOUT1 or IOUT2: -100 mV to VCC; (7)ESD Susceptability: 800V.

Features

DAC1232LCJ features: (1)Linearity specified with zero and full-scale adjust only; (2)Direct interface to all popular microprocessors; (3)Double-buffered, single-buffered or flow through digital data inputs; (4)Logic inputs which meet TTL voltage level specs (1.4V logic threshold); (5)Works with ±10V referenceDfull 4-quadrant multiplication; (6)Operates stand-alone (without mP) if desired; (7)All parts guaranteed 12-bit monotonic; (8)DAC1230 series is pin compatible with the DAC0830 series 8-bit MICRO-DACs.
