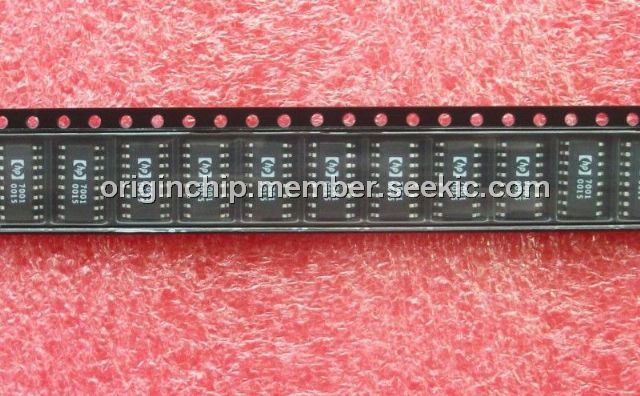

Product Summary
The HSDL7001100 is an IR 3/16 Encode/Decode IC. It can be used with a microcontroller/microprocessor that has a serial communication interface (UART). Prior to communication, the processor selects the transmission baud rate. Serial data is then
transmitted or received at the prescribed data rate. The HSDL7001100 consists of two state machines – the SIR (Serial InfraRed) Encode and SIR Decode blocks. The applications of the HSDL7001100 include: Interfaces with IR Transceivers in: Computer Applications: Notebook Computers, Sub-notebooks, Desktop PCs, PDAs, Printers, Dongle or other RS-232 adapter; Telecom Applications: Modems, Fax Machines, Pagers, Phones; Handheld Data Collection: Industrial, Medical, Transportation.
Parametrics
HSDL7001100 absolute maximum ratings: (1)Storage Temperature TS: -65 to +150 ℃; (2)Operating Temperature TA: -40 to +85 ℃; (3)Output Current IO: -100 to 100 mA; (4)Power Dissipation PMAX: 0.46 W; (5)Input/Output Voltage VI/VO: -0.5 to VCC + 0.5 V; (6)Power Supply Voltage VCC: -0.5 to 7.0 V; (7)Electrostatic Protection VESD: 4000 V.
Features
HSDL7001100 features: (1)Compliant with IrDA 1.0 Physical Layer Specs; (2)Interfaces with IrDA 1.0 Compliant IR Transceivers; (3)Used in Conjunction with Standard 16550 UART; (4)Transmits/Receives either 1.63 ms or 3/16 Pulse Mode; (5)Internal or External Clock modes; (6)Programmable Baud Rate; (7)2.7-5.5 V Operation; (8)16 Pin SOIC Package.

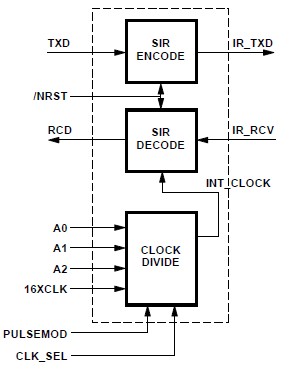

Diagrams
 |
