Product Summary

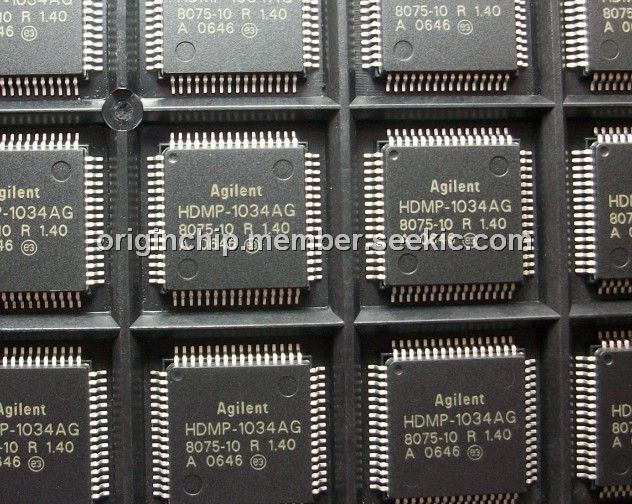

The HDMP1034AG is a kind of 1.4 GBd Receiver with CIMT Encoder/Decoder and Variable Data Rate. The THDMP1034AG receiver is used to build a high-speed data link for point-to-point communication. The receiver is housed in standard plastic 64 pin PQFP packages. The chip set hides from the user the complexity of encoding, multiplexing, clock extraction, demultiplexing and decoding. The CIMT encoding scheme used ensures the DC balance of the serial line. When data or control words are not being sent the transmitter sends idle words. The typical applications of THDMP1034AG: (1)Cellular base station; (2)ATM switch; (3)Backplane/bus extender; (4)Video, image acquisition; (5)Point to point data link; (6)Implement SCI-FI standard.
Parametrics
HDMP1034AG absolute maximum ratings:(1)VCC,Supply Voltage: -0.5 to 5.0 V; (2)VIN,TTL TTL Input Voltage: -0.7 to 5.5 V; (3)VIN,BLL H50 Input Voltage: 2.0 to VCC V; (4)IO,TTL TTL Output Source Current: 13 mA; (5)Tstg, Storage Temperature : -65 to +150℃; (6)TJ, Junction Temperature: 0 to +150℃; (7)Tmax, Maximum Assembly Temperature (10 seconds maximum): +260℃.
Features
HDMP1034AG features: (1)3.3 V supply, low power dissipation: 660 mW Tx, 792 mW Rx; (2)On-chip encode/decode using Conditional Inversion Master Transition (CIMT) protocol; (3)1:N broadcast ready configurable receiver inputs allow multi-point data broadcast using a single transmitter; (4)Parallel Automatic Synchronization System (PASS) allows receiver to read recovered words with local reference clock; (5)Robust simplex mode; (6)Wide range serial rate: 260-1400 MBaud (user selectable); (7)5 V tolerant TTL interface: 16 or 17 Bits wide; (8)Low cost 64 pin plastic package: 14x14 mm2 PQFP.

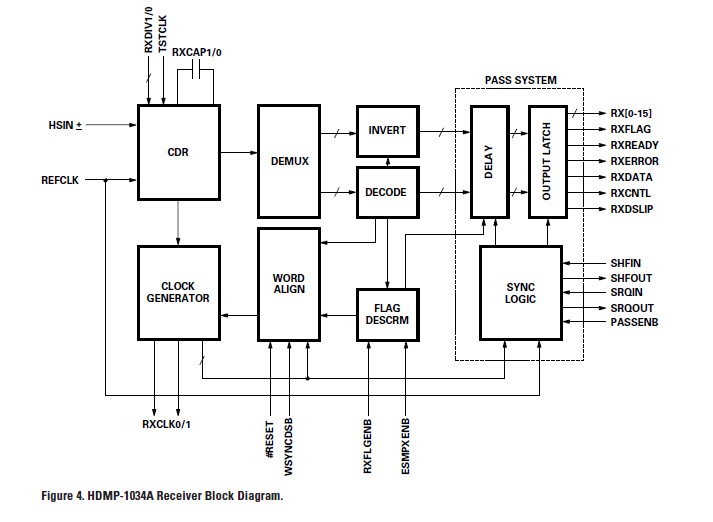

Diagrams
 |
