Product Summary

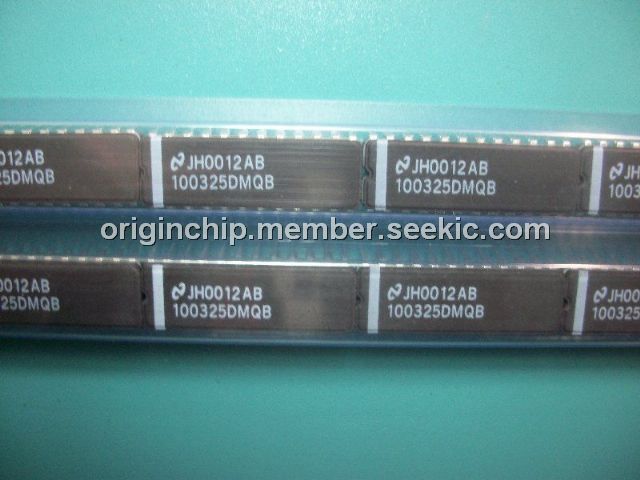

The 100325DMQB is a hex translator for converting F100K logic levels to TTL logic levels. Differential inputs allow each circuit to be used as an inverting, non-inverting or differential receiver. An internal reference voltage generator provides VBB for single-ended operation, or for use in Schmitt trigger applications. All inputs have 50 kΩ pull-down resistors. When the inputs are either unconnected or at the same potential the outputs will go low.

Parametrics

00325DMQB absolute maximum ratings: (1)Storage Temperature (TSTG): -65 to +150℃; (2)Maximum Junction Temperature (TJ): +175℃; (3)VEE Pin Potential to Ground Pin: -7.0V to +0.5V; (4)VTTL Pin Potential to Ground Pin: -0.5V to +6.0V; (5)Input Voltage (DC): VEE to +0.5V; (6)Voltage Applied to Output in HIGH State (with VCC = 0V): -0.5V to VCC; (7)Current Applied to Output in LOW State (Max): twice the rated IOL (mA); (8)ES: ≥2000V.

Features

100325DMQB features: (1)Pin/function compatible with 100125; (2)Meets 100125 AC specifications; (3)50% power reduction of the 100125; (4)Differential inputs with built in offset; (5)Standard FAST outputs; (6)2000V ESD protection; (7)-4.2V to -5.7V operating range; (8)Available to Microcircuit Drawing (SMD) 5962-9153101.

Diagrams

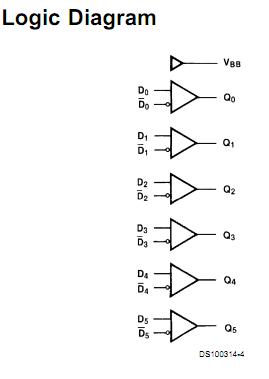

100325DMQB logic diagram
