Product Summary
The MCZ33976EG is a Dual Gauge Driver with Configurable Response Time. This monolithic IC MCZ33976EG consists of four dual output H-Bridge coil drivers and the associated control logic. Each pair of H-Bridge drivers is used to automatically control the speed, direction, and magnitude of current through the two coils of a two-phase instrumentation step motor, similar to an MMT-licensed AFIC 6405 or Switec MS-X15.xxx motor. The MCZ33976EG is ideal for use in automotive instrumentation systems requiring distributed and flexible step motor gauge driving. The MCZ33976EG also eases the transition to step motors from air core motors by emulating the air core pointer movement with little additional processor bandwidth utilization.
Parametrics
MCZ33976EG absolute maximum ratings: (1)Power Supply Voltage, VPWR(SUS): -0.3 to 41V; (2)Input Pin Voltage, VIN: -0.3 to 7.0 V; (3)SIN +/- COS +/- Continuous Per Output Current, IOUTMAX: 40 mA; (4)Storage Temperature, TSTG: -55 to 150℃; (5)Operating Junction Temperature, TJ: -40 to 150℃; (6)Thermal Resistance, Junction to Ambient, RθJA: 60℃/W; Junction to Lead, RθJL: 20℃/W; (7)ESD Voltage, Human Body Model, VESD1: ±2000V; Machine Model, VESD2: ±200V.
Features
MCZ33976EG features: (1)MMT-Licensed Two-Phase Step Motor Compatible; (2)Switec MS-X15.xxx Step Motor Compatible; (3)Minimal Processor Overhead Required; (4)Fully Integrated Pointer Movement and Position State Machine with Channel-Independent Configurable Pointer Movement; (5)4096 Possible Steady State Pointer Positions; (6)340° Maximum Pointer Sweep; (7)Maximum Acceleration of 4500°/s2 ; (8)Maximum Pointer Velocity of 400°/s; (9)Analog Microstepping (12 Steps/Degree of Pointer Movement); (10)Pointer Calibration and Return to Zero (RTZ); (11)SPI-Controlled 16-Bit Word; (12)Calibratable Internal Clock; (13)Low Sleep Mode Current; (14)Pb-Free Packaging Designated by Suffix Code EG.

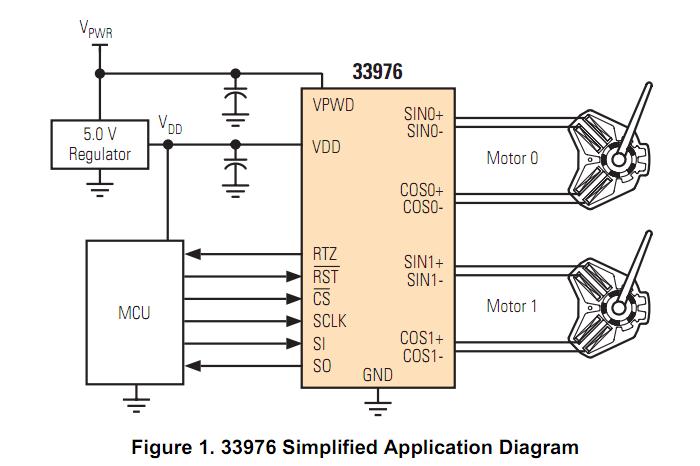

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCZ33976EG |
Freescale Semiconductor |
Power Driver ICs CONFIG DUAL GAUGE DR |
Data Sheet |
Negotiable |
|
||||
|
MCZ33976EGR2 |
Freescale Semiconductor |
Power Driver ICs CONFIG DUAL GAUGE DR |
Data Sheet |
Negotiable |
|
||||
