Product Summary
The MC13155DR2 is a complete wideband FM detector designed for satellite TV and other wideband data and analog FM applications. This device may be cascaded for higher IF gain and extended Receive Signal Strength Indicator (RSSI) range.
Parametrics
MC13155DR2 absolute maximum ratings: (1)Power Supply Voltage, VEE (max): 6.5 Vdc; (2)Input Voltage, Vin: 1.0 Vrms; (3)Junction Temperature, TJ: +150℃; (4)Storage Temperature Range, Tstg: – 65 to +150℃.
Features
MC13155DR2 features: (1)12 MHz Video/Baseband Demodulator; (2)Ideal for Wideband Data and Analog FM Systems; (3)Limiter Output for Cascade Operation; (4)Low Drain Current: 7.0 mA; (5)Low Supply Voltage: 3.0 to 6.0 V; (6)Operates to 300 MHz.

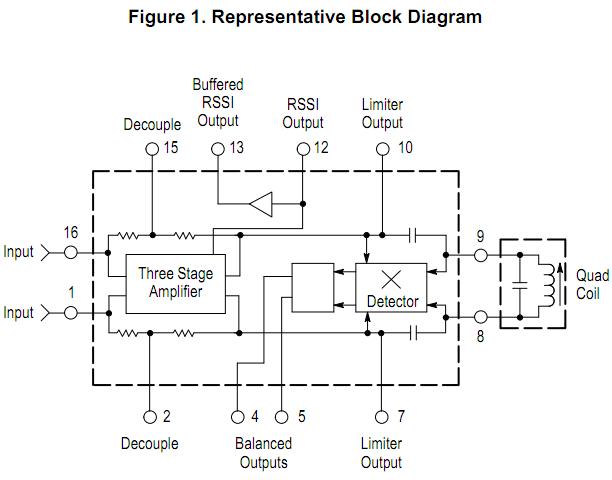

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

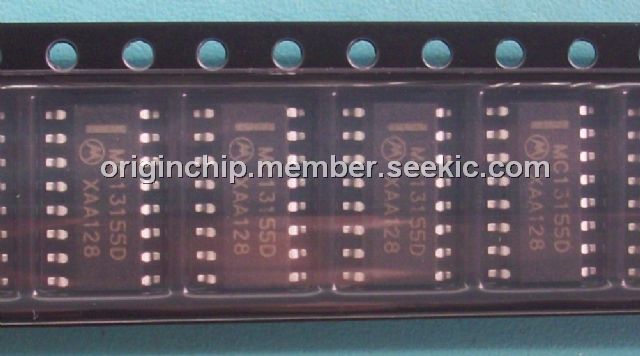

 MC13155DR2 |
Freescale Semiconductor |
IC FM DETECTOR WIDEBAND 16-SOIC |
Data Sheet |
Negotiable |
|
||||
