Product Summary
The EE80C188XL20 is a 16-bit high-integration embedded processor. The EE80C188XL20 provides an on-chip clock generator for both internal and external clock generation. The clock generator features a crystal oscillator, a divide-by-two counter, synchronous and asynchronous ready inputs, and reset circuitry.
Parametrics
EE80C188XL20 absolute maximum ratings: (1)Ambient Temperature under Bias:0 to 70℃; (2)Storage Temperature:-65 to 150℃; (3)Voltage on Any Pin with Respect to Ground:-1.0V to 7.0V; (4)Package Power Dissipation:1W.
Features
EE80C188XL20 features: (1)Static, Modular CPU; (2)Clock Generator; (3)2 Independent DMA Channels; (4)Programmable Interrupt Controller; (5)3 Programmable 16-Bit Timers; (6)Dynamic RAM Refresh Control Unit; (7)Programmable Memory and Peripheral Chip Select Logic; (8)Programmable Wait State Generator; (9)Local Bus Controller; (10)Power-Save Mode; (11)System-Level Testing Support (High Impedance Test Mode).

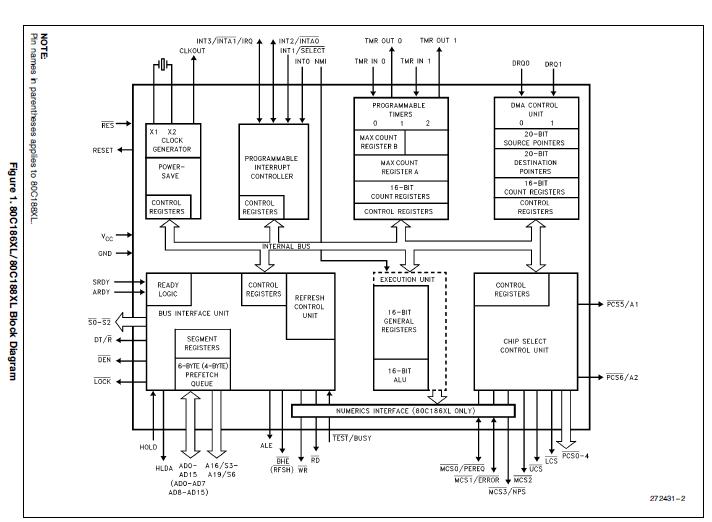

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

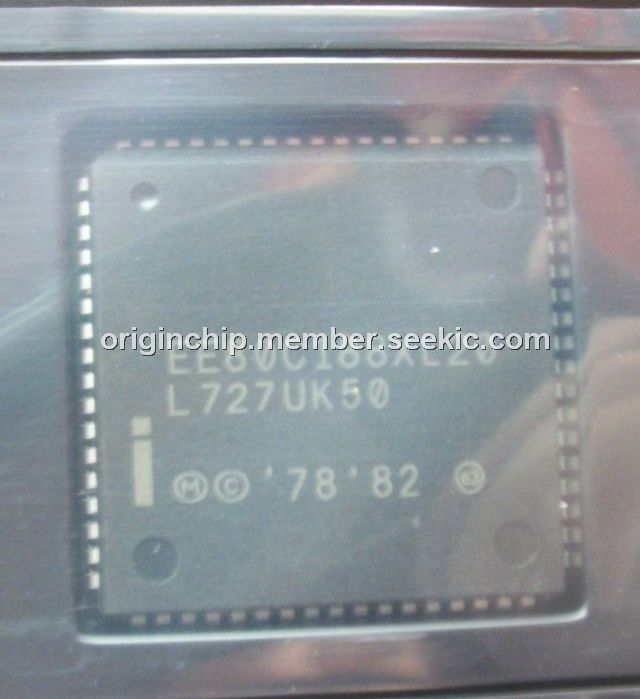

 EE80C188XL20 |
|
IC MPU 16BIT 5V 20MHZ 68PLCC |
Data Sheet |
Negotiable |
|
||||||
