Product Summary

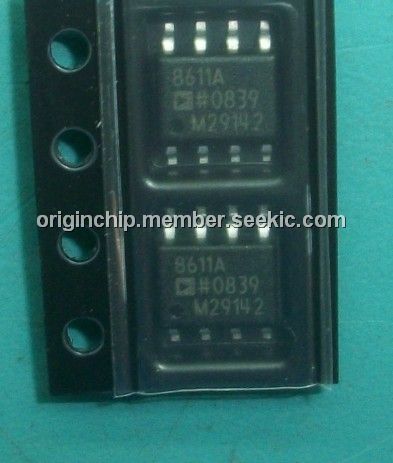

The AD8611AR is a single and dual 4 ns comparator with latch function and complementary output. Fast 4 ns propagation delay makes the AD8611AR a good choice for timing circuits and line receivers. The applications of the AD8611AR are High-Speed Timing, Clock Recovery and Clock Distribution, Line Receivers, Digital Communications, Phase Detectors, High-Speed Sampling, Read Channel Detection, PCMCIA Cards, Zero Crossing Detector, High-Speed A/D Converter, Upgrade for LT1394 and LT1016 Designs.

Parametrics

AD8611AR absolute maximum ratings: (1)Total Analog Supply Voltage:7.0 V; (2)Digital Supply Voltage:7.0 V; (3)Input Voltage:±4 V; (4)Differential Input Voltage:±5 V; (5)Output Short-Circuit Duration to GND:Indefinite; (6)Storage Temperature Range:–65℃ to +150℃; (7)Operating Temperature Range:–40℃ to +85℃; (8)Junction Temperature Range:–65℃ to +150℃; (9)Lead Temperature Range (Soldering, 10 sec):300℃.

Features

AD8611AR features: (1)4 ns Propagation Delay at 5 V; (2)Single Supply Operation: 3 V to 5 V; (3)100 MHz Input; (4)Latch Function.

Diagrams

AD8611AR pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8611AR
AD8611AR

IC COMPARATOR SNGL 4NS HS 8-SOIC
Data Sheet
0-98: $2.89
AD8611ARM-R2
AD8611ARM-R2

IC COMP SNGL 4NS ULTRFAST 8-MSOP
Data Sheet
Negotiable
AD8611ARM-REEL
AD8611ARM-REEL

IC COMP SNGL 4NS ULTRFAST 8-MSOP
Data Sheet
Negotiable
AD8611ARMZ-R2
AD8611ARMZ-R2

IC COMP SNGL 4NS ULTRFAST 8-MSOP
Data Sheet
0-1: $3.62
1-10: $3.25
10-25: $2.92
25-100: $2.65
AD8611ARMZ-REEL
AD8611ARMZ-REEL

IC COMP SGL 4NS ULTRFAST 8MSOP
Data Sheet
0-3000: $1.45
AD8611AR-REEL
AD8611AR-REEL

IC COMP SNGL 4NS ULTRFAST 8-SOIC
Data Sheet
0-2500: $1.88
AD8611AR-REEL7
AD8611AR-REEL7

IC COMP SNGL 4NS ULTRFAST 8-SOIC
Data Sheet
Negotiable
AD8611ARZ
AD8611ARZ

IC COMP SNGL 4NS ULTRFAST 8-SOIC
Data Sheet
0-1: $3.17
1-10: $2.84
10-100: $2.32
100-250: $2.10
250-500: $1.88
500-1000: $1.59
1000-2500: $1.51
