Product Summary

The MC100EPT21DG is a Differential LVPECL/LVDS/CML to LVTTL/LVCMOS translator. Because LVPECL/LVDS/CML input levels and LVTTL/LVCMOS output levels are used only +3.3V and ground are required. The small outline 8-lead SOIC package makes the MC100EPT21DG ideal for applications which require the translation of a clock or data signal.

Parametrics

MC100EPT21DG absolute maximum ratings: (1)VCC, PECL Power Supply when GND = 0 V: 3.8 V; (2)VIN, PECL Input Voltage when GND = 0 V, VI≦VCC: 0 to 3.8 V; (3)IBB, VBB Sink/Source: ±0.5 mA; (4)TA, Operating Temperature Range: -40 to +85℃; (5)Tstg, Storage Temperature Range: -65 to +150℃; (6)θJA, Thermal Resistance (Junction to Ambient): 0 lfpm: 190℃/W; (7)500lfpm: 130℃/W; (8)θJC, Thermal Resistance (Junction to Case), Standard Board: 41 to 44℃/W.

Features

MC100EPT21DG features: (1)1.4 ns Typical Propagation Delay; (2)Maximum Frequency > 275 MHz Typical; (3)LVPECL/LVDS/CML Inputs, LVTTL/LVCMOS Outputs; (4)24 mA TTL outputs; (5)Operating Range: VCC = 3.0 V to 3.6 V with GND = 0 V; (6)The 100 Series Contains Temperature Compensation; (7)VBB Output; (8)Pb-Free Packages are Available.

Diagrams

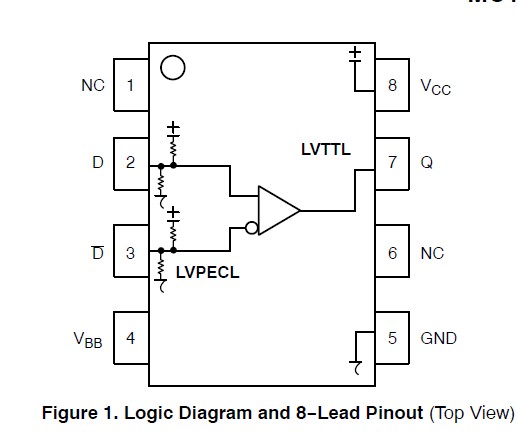

MC100EPT21DG diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

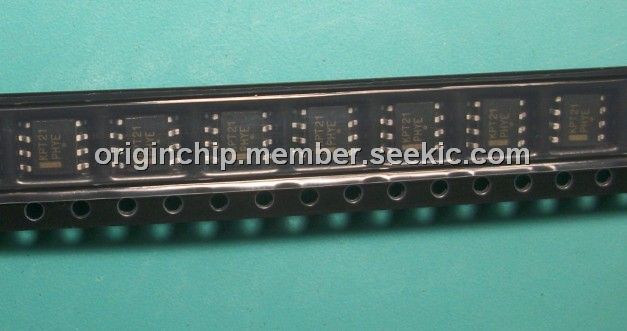

MC100EPT21DG
MC100EPT21DG
ON Semiconductor
Translation - Voltage Levels 3.3V Diff LVPECL to LVTTL
Data Sheet
0-1: $4.43
1-25: $4.03
25-100: $3.11
100-500: $2.89
