Product Summary
THe CLC401AJP is a wideband, fast-setting op amp designed for applications requiring gains greater than ±7. Constructed using an advanced complementary bipolar process and aproprietary design, the CLC401AJP features dynamic performance far beyond that of typical high-speed monlithic op amps.The applications of the CLC401AJP are Flash, precision A/D conversion, Photodiode, CCD preamps, IF processors, High-speed modems, radios, Line drivers, DC-coupled log amplifiers and High-speed communications.
Parametrics
CLC401AJP absolute maximum ratings: (1)VCC: ±7mA; (2)IOUT: 60mA; (3)common mode intput voltage: ±VCC; (4)differential input voltage: 5V; (5)junction temperature range: 150℃; (6)operating temperature range: -40 to 85℃; (7)storage temperature range: -65 to 150℃; (8)lead solder duration: 10sec; (9)recommended gain range: 7 to 50, -1 to -50.
Features
CLC401AJP features: (1)-3dB bandwidth of 150MHz; (2)0.1% settling in 10ns; (3)Low power, 150mW; (4)Overload and short circuit protected; (5)Stable without compensation; (6)Recommended gain range, ±7 to ±50.

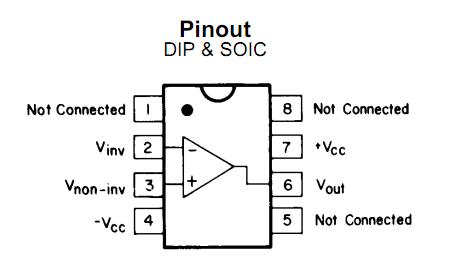

Diagrams
 |
