Product Summary

The AD848JRZ is a kind of high speed, low power monolithic operational amplifier. The device is internally compensated so that it is stable for closed loop gains of 5 or greater. The AD848JRZ achieves its combination of fast ac and good dc performance by utilizing Analog Devices junction isolated complementary bipolar (CB) process. This process enables these op amps to achieve their high speed while only requiring 4.8 mA of current from the power supplies. The AD848JRZ is designed for Cable Drivers, 8- and 10-Bit Data Acquisition Systems, Video and RF Amplification and Signal Generators.

Parametrics

AD848JRZ absloute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation: Plastic (N): 1.1 Watts; Small Outline (R): 0.9 Watts; Cerdip (Q): 1.1 Watts; LCC (E): 0.8 Watts; (3)Input Voltage : ±VS; (4)Differential Input Voltage: ±6 V; (5)Storage Temperature Range (Q): –65℃ to +150℃; (N, R): –65℃ to +125℃; (6)Junction Temperature: +175℃; (7)Lead Temperature Range (Soldering 60 sec): +300℃.

Features

AD848JRZ features: (1)725 MHz Gain Bandwidth – AD849; (2)175 MHz Gain Bandwidth – AD848; (3)4.8 mA Supply Current; (4)300 V/ms Slew Rate; (5)80 ns Settling Time to 0.1% for a 10 V Step – AD849; (6)Differential Gain: AD848 = 0.07%, AD849 = 0.08%; (7)Differential Phase: AD848 = 0.088, AD849 = 0.048; (8)Drives Capacitive Loads.

Diagrams

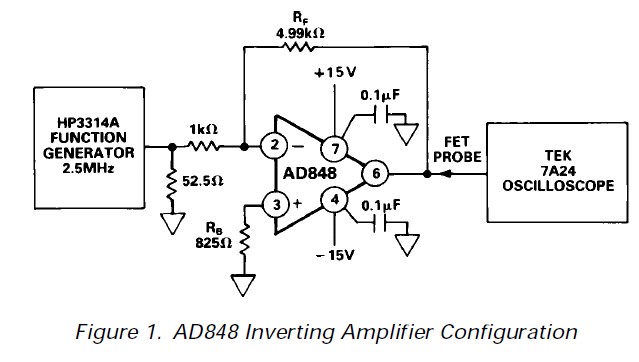

AD848JRZ circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD848JRZ
AD848JRZ

IC OPAMP GP 175MHZ LP 32MA 8SOIC
Data Sheet
0-1: $4.05
1-10: $3.65
10-100: $3.00
100-250: $2.75
250-500: $2.51
500-1000: $2.19
1000-2500: $2.16
AD848JRZ-REEL
AD848JRZ-REEL

IC OPAMP GP 175MHZ LP 32MA 8SOIC
Data Sheet
0-2500: $2.16
AD848JRZ-REEL7
AD848JRZ-REEL7

IC OPAMP GP 175MHZ LP 32MA 8SOIC
Data Sheet
0-1000: $2.19
