AD7998BRUZ0

8-channel, 12-bit, successive approximation ADC, 2.7 V to 5.5 V, 2 μs, SOP, AD7998BRUZ0

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.80~2.00

PartNumber:: AD7998BRUZ0

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susan's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-24

From Other Seller

Part Number:AD7998BRUZ0
US $1.80 - 2.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

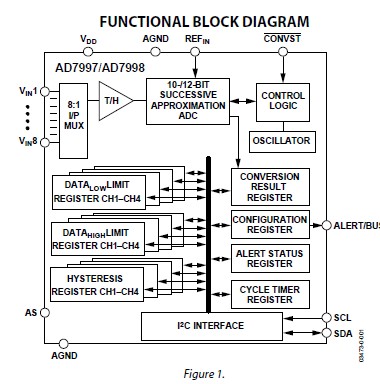

The AD7998BRUZ0 is a 8-channel, 12-bit, low power, successive approximation ADC with an I2C-compatible interface. The AD7998BRUZ0 operates from a single 2.7 V to 5.5 V power supply and features a 2 μs conversion time. The parts contain an 8-channel multiplexer and track-and-hold amplifier that can handle input frequencies up to 11 MHz.The The AD7998BRUZ0 provides a 2-wire serial interface that is compatible with I2C interfaces. Each part comes in two versions, AD7997-0/AD7998-0 and AD7997-1/AD7998-1, and each version allows at least two different I2C addresses. The I2C interface on the AD7997-0/AD7998-0 supports standard and fast I2C interface modes. The I2C interface on the AD7997-1/ AD7998-1 supports standard, fast, and high speed I2C interface modes.

Parametrics

AD7998BRUZ0 absolute maximum ratings: (1)VDD to GND: -0.3 V to 7 V; (2)Analog Input Voltage to GND: -0.3 V to VDD + 0.3 V; (3)Reference Input Voltage to GND: -0.3 V to VDD + 0.3 V; (4)Digital Input Voltage to GND: -0.3 V to +7 V; (5)Digital Output Voltage to GND: -0.3 V to VDD + 0.3 V; (6)Input Current to Any Pin Except Supplies: ±10 mA; (7)Operating Temperature Range: Commercial (B Version): -40℃ to +85℃; (8)Storage Temperature Range: -65℃ to +150°; (9)Junction Temperature: 150℃; (10)20-Lead TSSOP: θJA, Thermal Impedance: 143℃/W; θJC Thermal Impedance: 45℃/W; (11)Pb/SN Temperature, Soldering Reflow (10 s to 30 s): 240 (+0/-5)℃; (12)Pb-free Temperature, Soldering Reflow: 260 (+0)℃; (13)ESD: 1.5 kV.

Features

AD7998BRUZ0 features: (1)10- and 12-bit ADC with fast conversion time: 2 μs typ; (2)8 single-ended analog input channels; (3)Specified for VDD of 2.7 V to 5.5 V; (4)Low power consumption; (5)Fast throughput rate: up to 188 kSPS; (6)Sequencer operation; (7)Automatic cycle mode; (8)I2C compatible serial interface supports standard, fast, and high speed modes; (9)Out-of-range indicator/alert function; (10)Pin-selectable addressing via AS; (11)Shutdown mode: 1 μA max; (12)Temperature range: -40℃ to +85℃; (13)20-lead TSSOP package.
