Product Summary

The 565R10GAP10 is a Lower Voltage Ceramic Disc Capacitor. It consists of a ceramic disc of which both sides are silver-plated. Connection leads are made of tinned copper having diameters of 0.025 (0.64 mm) or 0.032(0.81 mm). The 565R10GAP10 may be supplied with radial kinked or straight leads having lead spacing of 0.250 (6.35 mm) or0.375 (9.5 mm) or 0.500 (12.7 mm). The standard tolerances are ± 10 % or ± 20 %. Coating is made of resin coating or flame retardant epoxy resin in accordance with UL 94 V-0.

Parametrics

565R10GAP10 absloute maximum ratings: (1)Capacitance range: 10 pF to 0.10 μF; (2)Rated voltage: 2 kVDC ,3 kVDC , 6 kVDC ,7.5 kVDC; (3)Insulation resistance: 2 kVDC min. 10 000 MΩ ,3 kVDC min. 50 000 MΩ ,6 kVDC min. 75 000 MΩ ,7.5 kVDC min. 200 000 MΩ; (4)Tolerance on capacitance: ± 10 % , ± 20 % , - 20 % to + 80 %; (5)Dissipation factor: 0.2 % max. at 1 MHz; 1 V 2.0 % max. at 1 kHz; 1 V; (6)Category temperature range: - 25℃ to + 85℃; (7)Climatic category acc. to EN60068-1: 25/085/21; (8)Operating temperature range: - 25℃ to + 105℃.

Features

565R10GAP10 features: (1)Low losses; (2)High capacitance in small sizes; (3)High stability; (4)Radial leads.

Diagrams

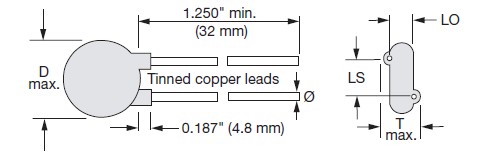

565R10GAP10 dimmension diagram
