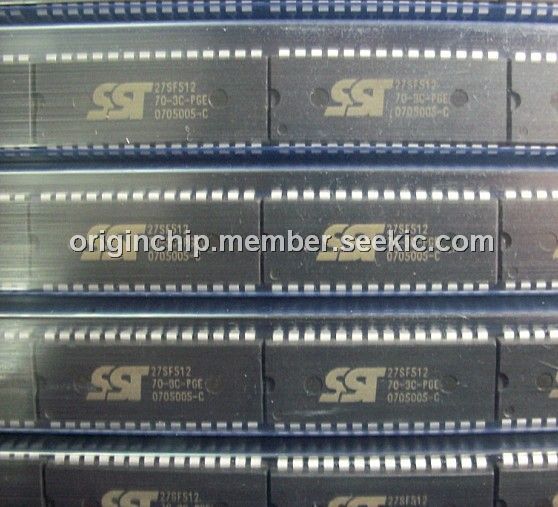

SST27SF512703CPGE

512 Kbit, Time Programmable Flash, DIP-28, -0.5V to VDD+0.5V, SST27SF512703CPGE

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.80~2.50

PartNumber:: SST27SF512703CPGE

Brand:: Silicon Storage Technology, Inc - SST | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susan's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-14

From Other Seller

Part Number:SST27SF512703CPGE
US $1.80 - 2.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SST27SF512703CPGE is a 64K 128K CMOS, Many-Time Programmable (MTP) low cost flash, manufactured with SST proprietary, high performance SuperFlash technology. The split-gate cell design and thick oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The MTP SST27SF512703CPGE can be electrically erased and programmed at least 1000 times using an external programmer with a 12V power supply. They have to be erased prior to programming. The SST27SF512703CPGE conforms to JEDEC standard pinouts for byte-wide memories. Featuring high-performance Byte-Program, the SST27SF512703CPGE provides a Byte-Program time of 20 μs. Designed, manufactured, and tested for a wide spectrum of applications, these devices are offered with an endurance of at least 1000 cycles. Data retention is rated at greater than 100 years.

Parametrics

SST27SF512703CPGE absolute maximum ratings: (1)Temperature Under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -2.0V to VDD+2.0V; (5)Voltage on A9 and VPP Pin to Ground Potential: -0.5V to 14.0V; (6)Package Power Dissipation Capability (TA = 25): 1.0W; (7)Through Hole Lead Soldering Temperature (10 Seconds): 300℃; (8)Surface Mount Solder Reflow Temperature: 260℃ for 10 seconds; (9)Output Short Circuit Current: 100 mA.

Features

SST27SF512703CPGE features: (1)4.5-5.5V Read Operation; (2)Superior Reliability; (3)Low Power Consumption; (4)Fast Read Access Time; (5)Fast Byte-Program Operation; (6)Electrical Erase Using Programmer; (7)TTL I/O Compatibility; (8)JEDEC Standard Byte-wide EPROM Pinouts; (9)Packages Available; (10)All non-Pb (lead-free) devices are RoHS compliant.
