Product Summary

The MPZ1608S221ATA00 is a chip inductor. It is an EMI countermeasure product for power line, and now maximizes impedance to 600Ω (at 100MHz) and rated current to 1A, while minimizes Rdc under 150mΩ as 1608 type.The applications of MPZ1608S221ATA00 include Noise suppression of personal computers, USB/IEEE1394 interfaces, HDDs, CD-ROMs, DVDs, DSCs, LCD panels, cellular phones, etc.

Parametrics

MPZ1608S221ATA00 absolute maxium ratings: (1)Operating/storage temperature ranges: –55 to +125℃; (2)Impedance [100MHz]: 220Ω±25%; (3)DC resistance: 0.05Ω max; (4)Rated current: 2A max; (5)Thickness: 0.8mm.

Features

MPZ1608S221ATA00 features:(1)This type is the best for energy-saving in the low DC resistance; (2)The products contain no lead and also support lead-free soldering.; (3)It is a product conforming to RoHS directive.

Diagrams

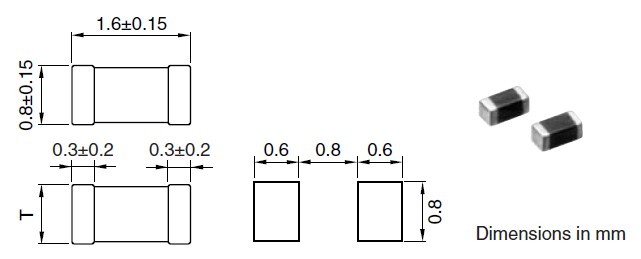

MPZ1608S221ATA00 dimension
