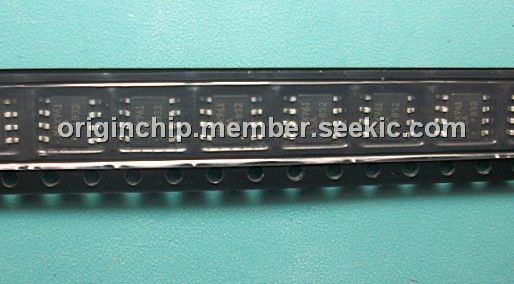

Product Summary
The MAX961ESA+ is a low-power, ultra-high-speed comparator with internal hysteresis. The device is optimized for single +3V or +5V operation. The input common-mode range extends 100mV Beyond-the-Rails, and the outputs can sink or source 4mA to within 0.52V of GND and VCC. Propagation delay is 4.5ns (5mV overdrive), while supply current is 5mA per comparator. The MAX961ESA+ has a shutdown mode in which it consumes only 270μA supply current per comparator. The applications of the MAX961ESA+ include: Single 3V/5V Systems, Portable/Battery-Powered Systems, Threshold Detectors/Discriminators, GPS Receivers, Line Receivers, Zero-Crossing Detectors, High-Speed Sampling Circuits.
Parametrics
MAX961ESA+ absolute maximum ratings: (1)Supply Voltage, VCC to GND: -0.3V to +6V; (2)All Other Pins: -0.3V to (VCC + 0.3V); (3)Duration of Output Short Circuit to GND or VCC: Continuous; (4)Continuous Power Dissipation (TA = +70℃) 5-Pin SOT23 (derate 7.1mW/℃ above +70℃): 571mW/℃; (5)Storage Temperature Range: -65℃ to +160℃; (6)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX961ESA+ features: (1)Ultra-Fast, 4.5ns Propagation Delay; (2)Ideal for +3V and +5V Single-Supply Applications; (3)Beyond-the-Rails Input Voltage Range; (4)3.5mV Internal Hysteresis for Clean Switching; (5)Output Latch; (6)TTL/CMOS-Compatible Outputs; (7)270μA Shutdown Current per Comparator; (8)Available in Space-Saving Packages: 8-Pin μMAX.

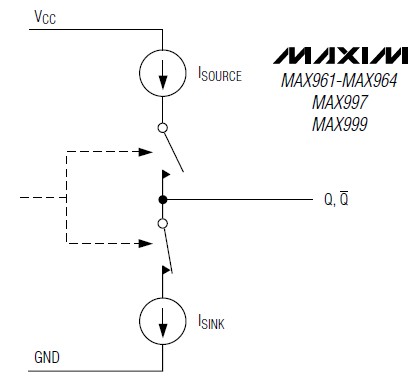

Diagrams
