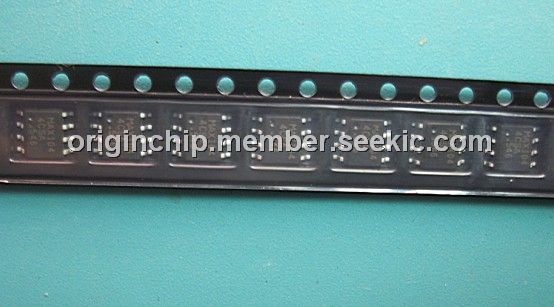

MAX1044CSA

switched-capacitor voltage converter, 20MA, 8SOIC, 1.5V to 10.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: MAX1044CSA

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susan's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-11

From Other Seller

Part Number:MAX1044CSA
US $1.00 - 2.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX1044CSA is a monolithic, CMOS switched-capacitor voltage converter that invert, double, divide, or multiply a positive input voltage. The MAX1044CSA is pin compatible with the industry-standard ICL7660 and LTC1044. Operation is guaranteed from 1.5V to 10V with no external diode over the full temperature range. The MAX1044CSA delivers 10mA with a 0.5V output drop. The MAX1044 has a BOOST pin that raises the oscillator frequency above the audio band and reduces external capacitor size requirements. The applications of the MAX1044CSA include -5V Supply from +5V Logic Supply, Personal Communications Equipment, Portable Telephones, Op-Amp Power Supplies, EIA/TIA-232E and EIA/TIA-562 Power Supplies, Data-Acquisition Systems, Hand-Held Instruments and Panel Meters.

Parametrics

MAX1044CSA absolute maximum ratings: (1)Supply Voltage (V+ to GND, or GND to VOUT): 10.5V; (2)Input Voltage on Pins 1, 6, and 7: -0.3V ≤ VIN ≤ (V+ + 0.3V); (3)LV Input Current: 20μA; (4)Continuous Power Dissipation: 727mW; (5)Operating Temperature Ranges: 0 to +70℃; (6)Storage Temperature Range: -65 to + 150℃; (7)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX1044CSA features: (1)Miniature μMAX Package; (2)1.5V to 10.0V Operating Supply Voltage Range; (3)98% Typical Power-Conversion Efficiency; (4)Invert, Double, Divide, or Multiply Input Voltages; (5)BOOST Pin Increases Switching Frequencies; (6)No-Load Supply Current: 200μA Max at 5V; (7)No External Diode Required for Higher-Voltage operation.
