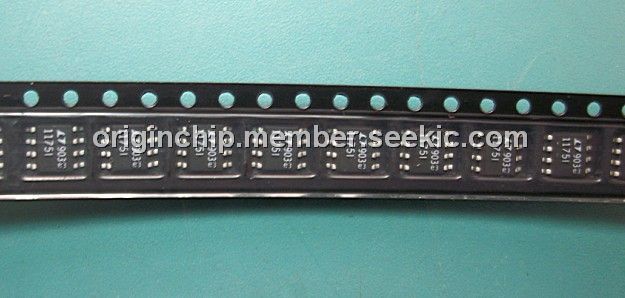

LT1175IS8PBF

micropower low dropout regulator, 0.5A, 8-SOIC, 5V, LT1175IS8PBF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: LT1175IS8PBF

Brand:: Linear Technology - Linear | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susan's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-11

From Other Seller

Part Number:LT1175IS8PBF
US $1.00 - 2.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LT1175IS8PBF is a negative micropower low dropout regulator. It features 45μA quiescent current, dropping to 10μA in shutdown. A new reference amplifier topology gives precision DC characteristics along with the ability to maintain good loop stability with an extremely wide range of output capacitors. Very low dropout voltage and high efficiency of the LT1175IS8PBF are obtained with a unique power transistor anti-saturation design. Adjustable and fixed 5V versions are available. The applications of the LT1175IS8PBF include: (1)Analog Systems; (2)Modems; (3)Instrumentation; (4)A/D and D/A Converters; (5)Interface Drivers; (6)Battery-Powered Systems.

Parametrics

LT1175IS8PBF absolute maxing ratings: (1)Input Voltage (Transient 1 sec): 25V; (2)Input Voltage (Continuous): 20V; (3)Input-to-Output Differential Voltage: 20V; (4)5V SENSE Pin (with Respect to GND Pin): 2V, -10V; (5)ADJ SENSE Pin(with Respect to OUTPUT Pin): 20V, -0.5V; (6)5V SENSE Pin(with Respect to OUTPUT Pin): 20V, -7V; (7)Output Reverse Voltage: 2V; (8)SHDN Pin to GND Pin Voltage: 13.5V, -20V; (9)SHDN Pin to VIN Pin Voltage: 30V, -5V; (10)Operating Junction Temperature Range: -40℃ to 125℃; (11)Ambient Operating Temperature Range: -40℃ to 85℃; (12)Storage Temperature Range: -65℃ to 150℃; (13)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1175IS8PBF features: (1)Stable with Wide Range of Output Capacitors; (2)Operating Current: 45μA; (3)Shutdown Current: 10μA; (4)Adjustable Current Limit; (5)Positive or Negative Shutdown Logic; (6)Low Voltage Linear Dropout Characteristics; (7)Fixed 5V and Adjustable Versions; (8)Tolerates Reverse Output Voltage.
