Product Summary

The IDT7132LA20JG is a high-speed 2K x 8 Dual-Port Static RAM. The IDT7132LA35CB is designed to be used as a stand-alone 8-bit Dual-Port RAM or as a MASTER Dual-Port RAM together with the IDT7132LA20JG Dual-Port in 16-bit-or-more word width systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 16-or-more-bit memory system applications results in full-speed, error-free operation without the need for additional discrete logic.

Parametrics

IDT7132LA20JG absolute maximum ratings: (1)VTERM, Terminal Voltage with Respect to GND: -0.5 to +7.0V; (2)TBIAS, Temperature Under Bias: -55 to +125℃; (3)TSTG, Storage Temperature: -65 to +150℃; (4)IOUT, DC Output Current: 50mA.

Features

IDT7132LA20JG features: (1)High-speed access: Commercial: 20/25/35/55/100ns (max.); Industrial: 25ns (max.); Military: 25/35/55/100ns (max.)Low-power operation, Active: 325mW (typ.); Standby: 5mW (typ.); (2)MASTER IDT7132 easily expands data bus width to 16-or-more bits using SLAVE IDT7142; (3)On-chip port arbitration logic (IDT7132 only); (4)BUSY output flag on IDT7132; BUSY input on IDT7142; (5)Battery backup operation —2V data retention (LA only); (6)TTL-compatible, single 5V ±10% power supply; (7)Available in 48-pin DIP, LCC and Flatpack, and 52-pin PLCC packages; (8)Military product compliant to MIL-PRF-38535 QML; (9)Industrial temperature range (–40 to +85℃) is available for selected speeds.

Diagrams

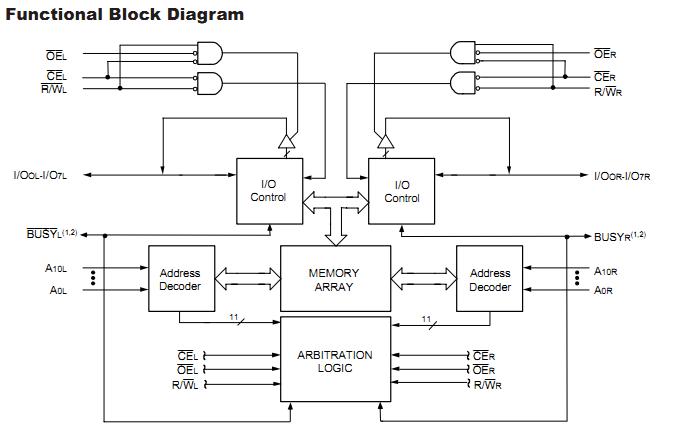

IDT7132LA20JG circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IDT7132LA20JG
IDT7132LA20JG

IC SRAM 16KBIT 20NS 52PLCC
Data Sheet
0-1: $10.77
1-25: $9.06
25-100: $8.32
100-250: $7.59
250-500: $7.10
500-1000: $6.51
1000-2500: $6.24
2500-5000: $6.07
5000-10000: $5.88
IDT7132LA20JG8
IDT7132LA20JG8

IC SRAM 16KBIT 20NS 52PLCC
Data Sheet
0-400: $7.59
