Product Summary
The BT261KPJ is a HSYNC Line Lock Controller designed specifically for image capture applications. Either composite video or TTL composite sync information is input via VIDEO. An internal sync separator separates horizontal and vertical sync information. Programmable horizontal and vertical video timing enables recovery of both standard and nonstandard timing information. The applications of the BT261KPJ include Image Processing, Video Digitizing, Desktop Publishing and Graphic Art Systems.
Parametrics
BT261KPJ absolute maximum ratings: (1)VCC (measured to GND): 7.0V; (2)Voltage on any Signal Pin: GND-0.5 to VCC+0.5V; (3)Ambient Operating Temperature, TA: -65 to 125℃; (4)Storage Temperature, Ts: 150℃; (5)Junction Temperature, Tj: 150℃; (6)Vapor Phase Soldering, TVSOL: 220℃.
Features
BT261KPJ features: (1)Programmable 12-bit Video Timing; (2)Bidirectional HSYNC and CLOCK Pins; (3)Horizontal Sync Noise Gating; (4)External VCO Support; (5)Standard MPU Interface; (6)TTL Compatible; (7)+ 5 V Monolithic CMOS; (8)28-pin PLCC Package; (9)Typical Power Dissipation: 300mW.

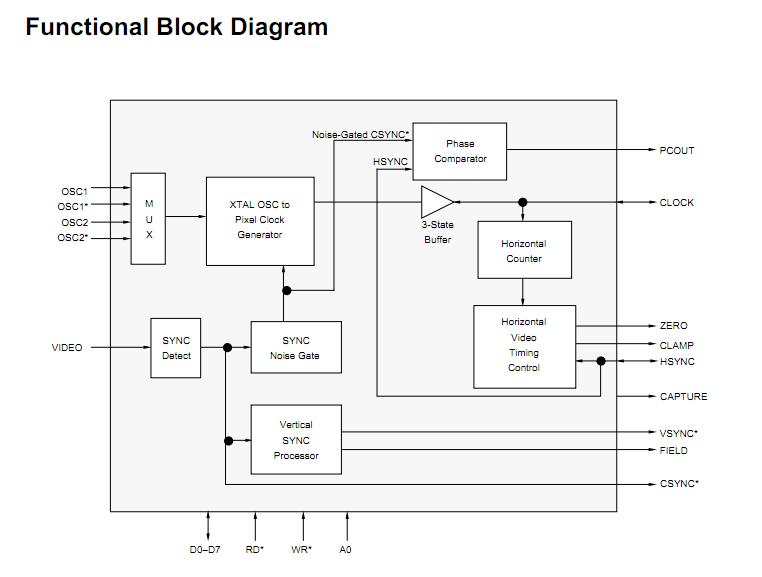

Diagrams
