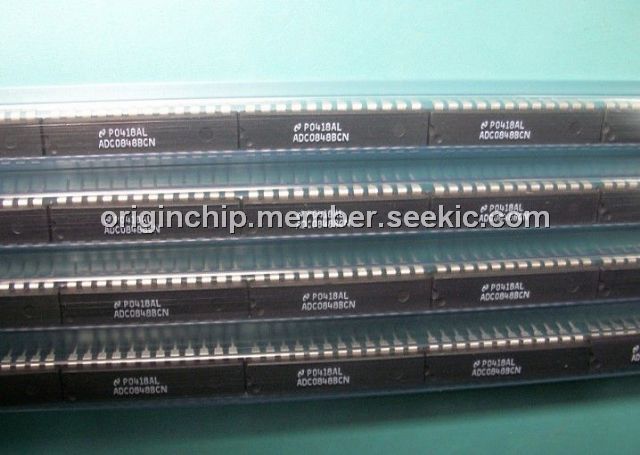

ADC0848BCN

successive approximation A/D converter, 8BIT, 24-DIP, 5V, 875 mW, ADC0848BCN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~3.00

PartNumber:: ADC0848BCN

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susan's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-10

From Other Seller

Part Number:ADC0848BCN
US $1.00 - 3.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

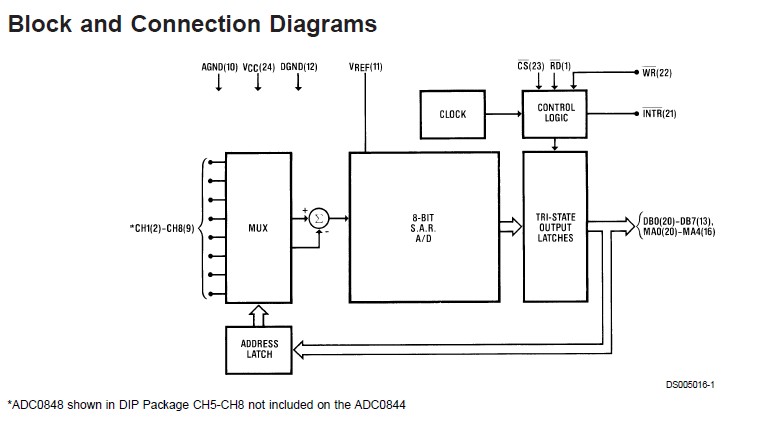

The ADC0848BCN is a CMOS 8-bit successive approximation A/D converter with versatile analog input multiplexer. The device can be software configured for single-ended, differential or pseudo-differential modes of operation. The ADC0848BCN is designed to operate from the control bus of a wide variety of microprocessors. TRI-STATE output latches that directly drive the data bus permit the A/Ds to be configured as memory locations or I/O devices to the microprocessor with no interface logic necessary.

Parametrics

ADC0848BCN absloute maximum ratings: (1)Supply Voltage (VCC): 6.5V; (2)Voltage: Logic Control Inputs: -0.3V to +15V; At Other Inputs and Outputs: -0.3V to VCC+0.3V; (3)Input Current at Any Pin: 5 mA; (4)Package Input Current: 20 mA; (5)Storage Temperature: -65℃ to +150℃; (6)Package Dissipation at TA=25℃: 875 mW; (7)ESD Susceptibility: 800V; (8)Lead Temperature: (Soldering, 10 seconds): Dual-In-Line Package (Plastic): 260℃; Dual-In-Line Package (Ceramic) 300℃; Molded Chip Carrier Package: Vapor Phase (60 seconds) 215℃; Infrared (15 seconds) 220℃.

Features

ADC0848BCN features: (1)Easy interface to all microprocessors; (2)Operates ratiometrically or with 5 VDC voltage reference; (3)No zero or full-scale adjust required; (4)4-channel or 8-channel multiplexer with address logic; (5)Internal clock; (6)0V to 5V input range with single 5V power supply; (7)0.3 standard width 20-pior 24-piDIP; (8)28 PiMolded Chip Carrier Package.
