Product Summary
The AD532JH is an internally trimmed integrated circuit multiplier. The AD532JH is the first pretrimmed single chip monolithic multiplier/ divider. It guarantees a maximum multiplying error of ±1.0% and a ±10 V output voltage without the need for any external trimming resistors or output op amp. Because the AD532JH is internally trimmed, its simplicity of use provides design engineers with an attractive alternative to modular multipliers, and its monolithic construction provides significant advantages in size, reliability and economy. Further, the AD532JH can be used as a direct replacement for other IC multipliers that require external trim networks. The applications of the AD532JH include Multiplication, Division, Squaring, Square Rooting, Algebraic Computation, Power Measurements, Instrumentation Applications, Available in Chip Form.
Parametrics
AD532JH absolute maximum ratings: (1)Output Voltage Swing: ±10 to ±13 V; (2)Output Impedance (f ≤ 1 kHz): 1 Ω; (3)Output Offset Voltage: ±30 mV; (4)Output Offset Voltage vs. Temperature: 2.0 mV/℃; (5)Output Offset Voltage vs. Supply: ±2.5 mV/%; (6)Signal Voltage Range (Diff. or CM Operating Diff): ±10 V; (7)CMRR: 50 dB; (8)Input Bias Current, X, Y Inputs 1.5 to 4 μA; X, Y Inputs TMIN to TMAX: 8 μA; Z Input: ±5 to ±15 μA; Z Input TMIN to TMAX: ±25 μA; (9)Offset Current: ±0.1 μA; (10)Differential Resistance: 10Ω.
Features
AD532JH features: (1)Pretrimmed to 61.0%; (2)No External Components Required; (3)Guaranteed 61.0% max 4-Quadrant Error; (4)Diff Inputs for (X1 – X2) (Y1 – Y2)/10 V Transfer Function; (5)Monolithic Construction, Low Cost.

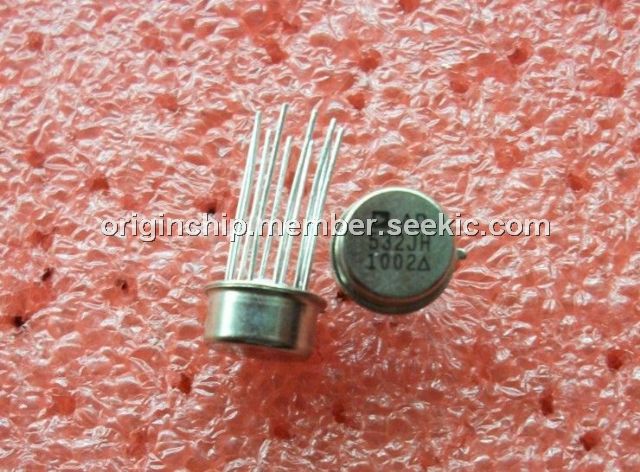

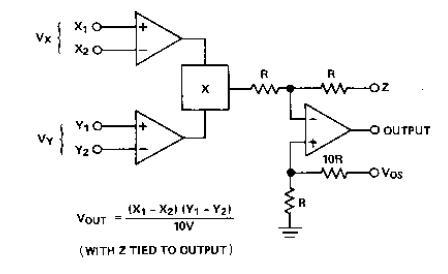

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD532JH |
Analog Devices Inc |
IC MULTIPLIER 10V TO-100-10 |
Data Sheet |
Negotiable |
|
||||||||||||||
 |
AD532JHZ |
|
IC MULTIPLIER 10V TO-100-10 CAN |
Data Sheet |
|
|
||||||||||||||
