Product Summary
The 2SC5868 is a medium power transistor (60V, 0.5A). It is an NPN Silicon epitaxial planar transistor. The 2SC5868 is widely used in small signal low frequency amplifier and high speed switching.
Parametrics
2SC5868 absolute maximum ratings: (1)Collector-base voltage, VCBO: 60V; (2)Collector-emitter voltage, VCEO: 60V; (3)Emitter-base voltage, VEBO: 6V; (4)Collector current: DC, IC: 0.5A; Pulsed, ICP: 1.0A; (5)Power dissipation, PC: 500mW; (6)Junction temperature, Tj: 150℃; (7)Range of storage temperature, Tstg: -55 to 150℃.
Features
2SC5868 features: (1)High speed switching (Tf : Typ. : 80ns at IC = 500mA); (2)Low saturation voltage, typically (Typ. : 75mV at IC = 100mA, IB = 10mA); (3)Strong discharge power for inductive load and capacitance load; (4)Complements the 2SA2090.

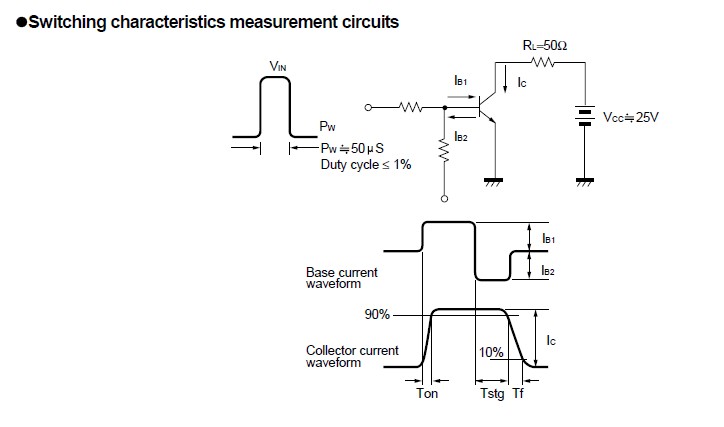

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC5868TLQ |
ROHM Semiconductor |
Transistors Bipolar (BJT) NPN 60V 0.5A |
Data Sheet |
|
|
||||||||||||
|
2SC5868TLR |
ROHM Semiconductor |
Transistors Bipolar (BJT) NPN 60V 0.5A |
Data Sheet |
|
|
||||||||||||
