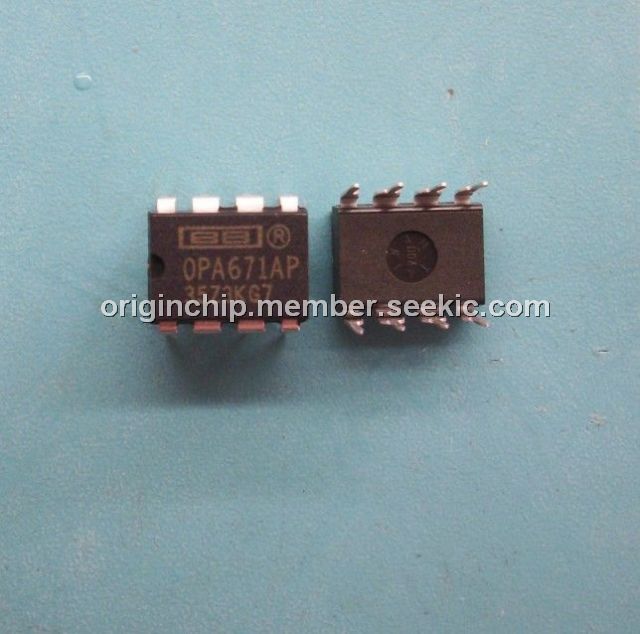

OPA671AP

monolithic operational amplifier, DIP8, ±18V, 35MHz, 50mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $13.00~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $13.00~15.00

PartNumber:: OPA671AP

Brand:: Burr-Brown Corporation - BB | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susan's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-14

From Other Seller

Part Number:OPA671AP
US $13.00 - 15.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
PCM63P-K

US $18.00 - 25.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The OPA671AP is a FET-input monolithic operational amplifier featuring wide bandwidth and fast settling time. Fabricated using Burr-Brown’s Difet, comple-mentary bipolar process, it provides an excellent combination of high speed, accuracy, and high output current. The applications of the OPA671AP include high-speed data acquisition, optoelectronics,l transimpedance amplifier, line driver and ccd buffer amplifier.

Parametrics

OPA671AP absolute maximum ratings: (1)Power Supply Voltage: ±18V; (2)Input Voltage: (V+) +1V to (V–) –1V; (3)Operating Temperature: –40 to +100℃; (4)Storage Temperature: –40 to +125℃; (5)Output Short-Circuit to Ground: 15s; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

OPA671AP features: (1)high gain-bandwidth: 35MHz; (2)low input noise: 10nV/√Hz; (3)high slew rate: 100V/μs; (4)fast settling: 240ns to 0.01%; (5)FET input: IB = 50pA max; (6)high output current: 50mA; (7)wide supply range: VS = ±4.5 to ±18V.
