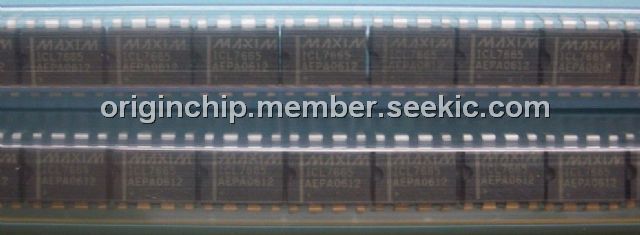

ICL7665AEPA+

microprocessor voltage monitor, 3μA, 1.6V to 16V, 8-DIP, ICL7665AEPA+

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.45~0.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.45~0.65

PartNumber:: ICL7665AEPA+

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susan's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-19

From Other Seller

Part Number:ICL7665AEPA+
US $0.45 - 0.65
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ICL7665AEPA+ is a microprocessor voltage monitor. The device warns microprocessors (mPs) of overvoltage and undervoltage conditions. It draws a typical operating current of only 3μA. The trip points and hysteresis of the two voltage detectors are individually programmed via external resistors to any voltage greater than 1.3V. The ICL7665AEPA+ will operate from any supply voltage in the 1.6V to 16V range, while monitoring voltages from 1.3V to several hundred volts. The Maxim ICL7665AEPA+ is an improved version with a 2%-accurate VSET1 threshold and guaranteed performance over temperature. The 3μA quiescent current of the ICL7665AEPA+ makes it ideal for voltage monitoring in battery-powered systems. In both battery- and line-powered systems, the unique combination of a reference, two comparators, and hysteresis outputs reduces the size and component count of many circuits.

Parametrics

ICL7665AEPA+ absolute maximum ratings: (1)Output Voltage Nominal: 18 V; (2)P(D) Max.: 200m ; (3)Nom. Supp: 5.0 V; (4)Minimum Operating Temp: 0 ℃; (5)Maximum Operating Temp: 70 ℃.

Features

ICL7665AEPA+ features: (1)μP Over/Undervoltage Warning; (2)Improved Second Source; (3)Dual Comparator with Precision Internal Reference; (4)3μA Operating Current; (5)2% Threshold Accuracy (ICL7665A); (6)1.6V to 16V Supply Voltage Range; (7)On-Board Hysteresis Outputs; (8)Externally Programmable Trip Points; (9)Monolithic, Low-Power CMOS Design.
