Product Summary

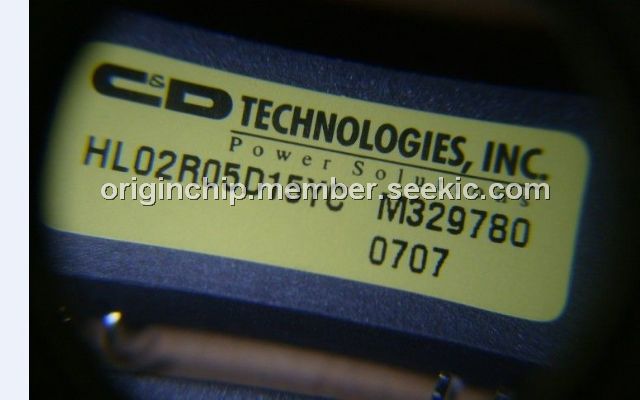

The HL02R05D15YC is a 2 Watt regulated dc/dc converter. The HL02R05D15YC offers an extensive selection of input and output voltage combinations to choose from. The miniature, regulated DC/DC converter come in 24 pin DIP and SMD packages. This small size is possible through the use of surface mount manufacturing technologies.

Parametrics

HL02R05D15YC absolute maximum ratings: (1)Internal Power Dissipation: 1.5W; (2)Short Circuit Duration: 30 Sec; (3)Lead Temperature (soldering, 10 seconds max): +300℃.

Features

HL02R05D15YC features: (1)llow cost; (2)internal filtering; (3)surface mount construction; (4)temperature range: -25 to +70℃; (5)industry standard pinout; (6)ROHS compliant.

Diagrams

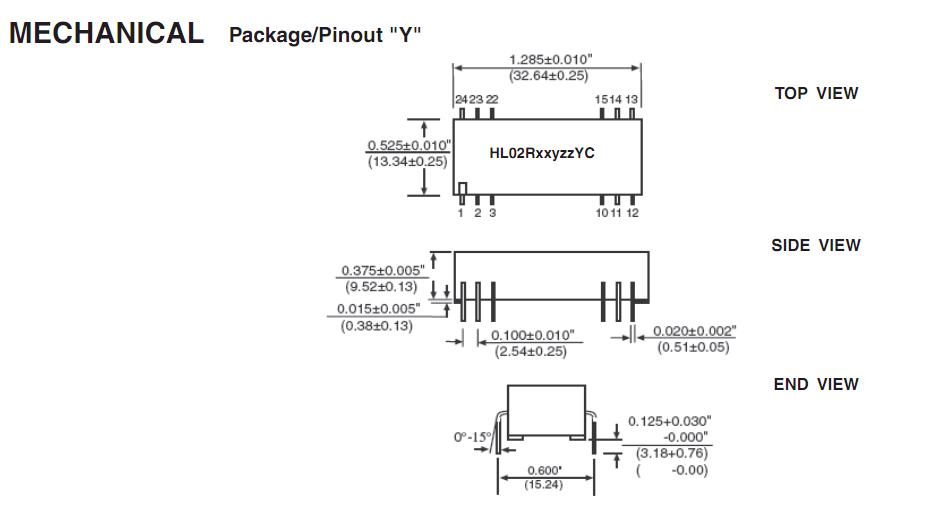

HL02R05D15YC dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HL02R05D15YC
HL02R05D15YC
Murata Power Solutions
DC/DC Converters 2W REG 5V TO +/-15V
Data Sheet
Negotiable
