EPCS4SI8N

flash memory device, 4MBIT, 8-SOIC, 3.3V, 15 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.00

PartNumber:: EPCS4SI8N

Brand:: Altera Corporation - ALTR | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susan's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-14

From Other Seller

Part Number:EPCS4SI8N
US $1.50 - 2.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

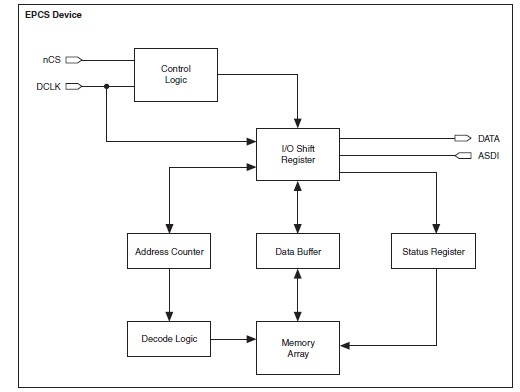

The EPCS4SI8N is a flash memory device with a serial interface that can store configuration data for a Stratix II FPGA or a Cyclone series device and reload the data to the device upon power-up or reconfiguration.

Parametrics

EPCS4SI8N absolute maximum ratings: (1)VCC, Supply voltage With respect to ground: -0.6 to 4.0 V; (2)VI, DC input voltage With respect to ground: -0.2 to 4.0 V; (3)IMAX, DC VCC or GND current: 15 mA; (4)IOUT, DC output current per pin: -25 to 25 mA; (5)PD, Power dissipation: 54 mW; (6)TSTG, Storage temperature No bias: -65 to 150 ℃; (7)TAMB, Ambient temperature Under bias: -65 to 135 ℃; (8)TJ, Junction temperature Under bias: 135 ℃ max.

Features

EPCS4SI8N features: (1)Supports active serial (AS) x1 configuration scheme; (2)Easy-to-use four-pin interface; (3)Low cost, low pin count, and non-volatile memory; (4)Low current during configuration and near-zero standby mode current; (5)2.7-V to 3.6-V operation; (6)EPCS1, EPCS4, and EPCS16 devices available in 8-pin small-outline integrated circuit (SOIC) package; (7)EPCS64 and EPCS128 devices available in 16-pin SOIC package; (8)Enables the Nios processor to access unused flash memory through AS memory interface; (9)Reprogrammable memory with more than 100,000 erase or program cycles; (10)Write protection support for memory sectors using status register bits; (11)In-system programming (ISP) support with SRunner software driver.
