AM26LS32DM

quadruple differential line receiver, SOP, 7 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~7.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.00~7.00

PartNumber:: AM26LS32DM

Brand:: Advanced Micro Devices - AMD | Pack: DIP | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susan's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-10

From Other Seller

Part Number:AM26LS32DM
US $4.00 - 7.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

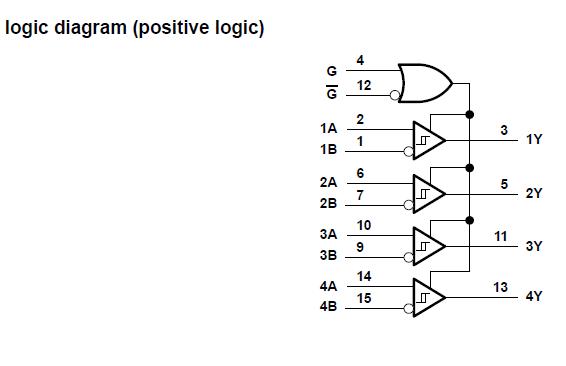

The AM26LS32DM is a quadruple differential line receiver for balanced and unbalanced digital data transmission. The enable function is common to all four receivers and offers a choice of active-high or active-low input. The 3-state outputs permit connection directly to a bus-organized system. Fail-safe design ensures that, if the inputs are open, the outputs always are high. The input impedance has been increased, resulting in less loading of the bus line. The additional stage has increased propagation delay; however, this does not affect interchangeability in most applications. The AM26LS32DM is characterized for operation from 0 to 70℃.

Parametrics

AM26LS32DM absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: Any differential input: ±25 V; (3)Other inputs: 7 V; (4)Differential input voltage, VID: ±25 V; (5)Package thermal impedance, θJA (see Note 3): D package : 73℃/W; N package: 67℃/W; NS package: 64℃/W; (6)Case temperature for 60 seconds, TC: FK package: 260℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D or N package: 260℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: J package: 300℃; (9)Storage temperature range, Tstg: –65℃ to 150℃.

Features

AM26LS32DM features: (1)AM26LS32A Devices Meet or Exceed the Requirements of ANSI TIA/EIA-422-B, TIA/EIA-423-B, and ITU Recommendations V.10 and V.11; (2)AM26LS32A Devices Have ±7-V Common-Mode Range With ±200-mV Sensitivity; (3)AM26LS33A Devices Have ±15-V Common-Mode Range With ±500-mV Sensitivity; (4)Input Hysteresis: 50 mV Typical; (5)Operate From a Single 5-V Supply; (6)Low-Power Schottky Circuitry; (7)3-State Outputs; (8)Complementary Output-Enable Inputs; (9)Input Impedance: 12 kΩ Min; (10)Designed to Be Interchangeable With Advanced Micro Devices AM26LS32. and AM26LS33.
