Product Summary
The AD9042ASTZ is a high speed, high performance, low power, monolithic 12-bit analog-to-digital converter.
Parametrics
AD9042ASTZ absolute maximum ratings: (1)AVCC Voltage:0V to 7V; (2)DVCC Voltage:0V to 7V; (3)Analog Input Voltage:0.5V to 4.5V; (4)Analog Input Current:20mA; (5)Digital Input Voltage (ENCODE):0V to AVCC; (6)ENCODE, ENCODE Differential Voltage:4V; (7)Digital Output Current:–40mA to 40mA; (8)Operating Temperature Range:–40℃ to +85℃; (9)Maximum Junction Temperature:+175℃; (10)Lead Temperature (Soldering, 10 sec):+300℃; (11)Storage Temperature Range (Ambient):–65℃ to +150℃.
Features
AD9042ASTZ features: (1)41 MSPS Minimum Sample Rate; (2)80 dB Spurious-Free Dynamic Range; (3)595 mW Power Dissipation; (4)Single +5 V Supply; (5)On-Chip T/H and Reference; (6)Twos Complement Output Format; (7)CMOS-Compatible Output Levels; (8)APPLICATIONS; (9)Cellular/PCS Base Stations; (10)GPS Anti-Jamming Receivers; (11)Communications Receivers; (12)Spectrum Analyzers; (13)Electro-Optics; (14)Medical Imaging; (15)ATE.

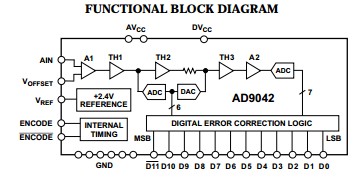

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AD9042ASTZ |
IC ADC 12BIT 41MSPS 44-TQFP |
Data Sheet |
|
|
||||||||||||||||
