Product Summary
The AD1890JPZ is a SamplePort Stereo Asynchronous Sample Rate Converter that solves sample rate interfacing and compatibility problems in digital audio equipment.Conceptually, the AD1890JPZ interpolates the input data up to a very high internal sample rate with a time resolution of 300 ps, then decimate down to the desired output sample rate. The AD1890JPZ is intended for 18- and 20-bit professional applications The typical applications of AD1890JPZ include: (1)Digital Mixing Consoles and Digital Audio Workstations; (2)CD-R, DAT, DCC and MD Recorders; (3)Multitrack Digital Audio and Video Tape Recorders; (4)Studio to Transmitter Links; (5)Digital Audio Signal Routers/Switches; (6)Digital Audio Broadcast Equipment; (7)High Quality D/A Converters; (8)Digital Tape Recorder Varispeed Applications; (9)Computer Communication and Multimedia Systems.
Parametrics
AD1890JPZ absloute maximum ratings: (1)VDD to GND: –0.3 to 7.0 V; (2)DC Input Voltage: –0.3 to VDD + 0.3 V; (3)Latch-Up Trigger Current: –1000 to +1000 mA; (4)Soldering: +300℃, 10 sec.
Features
AD1890JPZ features: (1)Automatically Sense Sample Frequencies—No Programming Required; (2)Tolerant of Sample Clock Jitter; (3)Smooth Transition When Sample Clock Frequencies Cross; (4)Accommodate Dynamically Changing Asynchronous Sample Clocks; (5)8 kHz to 56 kHz Sample Clock Frequency Range; (6)1:2 to 2:1 Ratio Between Sample Clocks; (7)–106 dB THD+N at 1 kHz (AD1890); (8)120 dB Dynamic Range (AD1890); (9)Optimal Clock Tracking Control: Short/Long Group Delay Modes; Slow/Fast Settling Modes; (10)Linear Phase in All Modes; (11)Equivalent of 4 Million 22-Bit FIR Filter Coefficients Stored On-Chip; (12)Automatic Output Mute; (13)Flexible Four Wire Serial Interfaces; (14)Low Power.

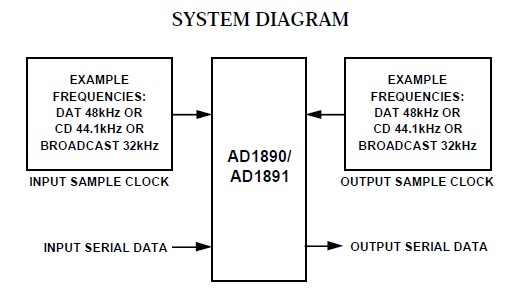

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

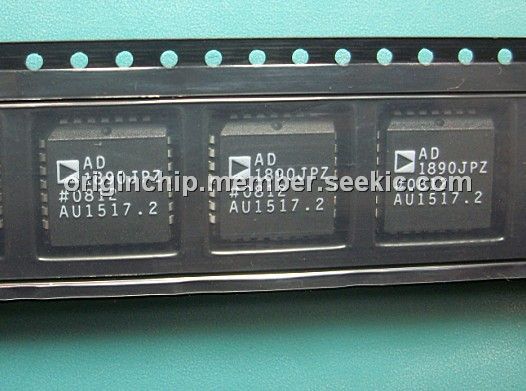

 AD1890JPZ |
Analog Devices Inc |
IC CONV SAMPLE RATE ASYNC 28PLCC |
Data Sheet |
|
|
||||||||||||||||
|
AD1890JPZ-REEL |
Analog Devices Inc |
IC CONV SAMPLE RATE ASYNC 28PLCC |
Data Sheet |
|
|
||||||||||||||||
